Home > Products > Marine Lighting > Linear

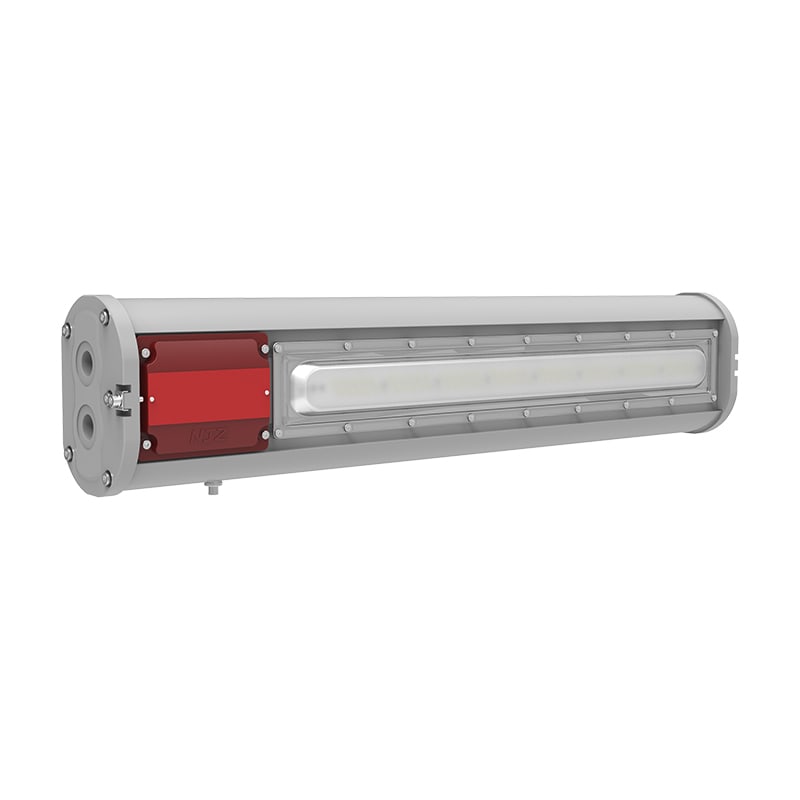

Archer™ FLL Linear

25W - 100W

Features / Advantages

Low profile design allows installation in work areas with low ceiling heights
Lens and LED driver field replaceable by qualified personnel on-site
UV stable and impact resistant diffused polycarbonate lens to minimize glare
Wiring access cover with captive screws for secure installation
Two entries each side for end to end feed through wiring
Screwless terminal block with 5-pole 6mm2 max conductor for easy wiring

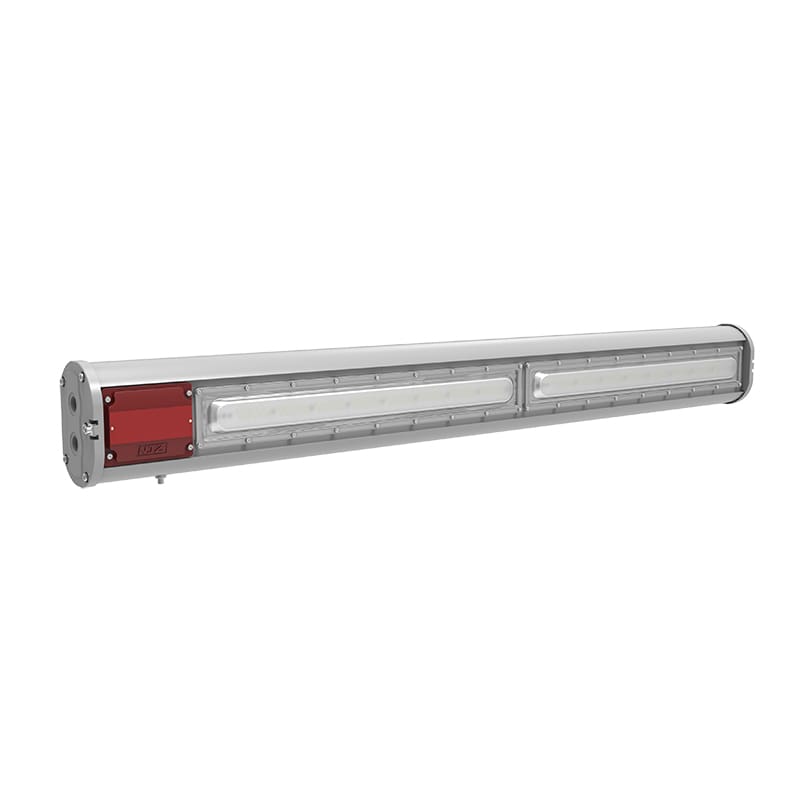

Single Lens model 25W to 50W; Double Lens model 75W to 100W
High luminous efficacy - Up to 150 Lm / W
Universal Voltage: AC100-277V (50/60Hz)
Superior CRI 70 compared to HPS, LPS, MH
Ambient range from - 40°C to + 55 °C ( 0°C to 40°C for Emergency Model )
Standard 12W 90mins operation time for emergency mode
Resistant to shock and vibration

Specsheet Installation Guide IES

Introducing the new generation LED linear
ABS Quality

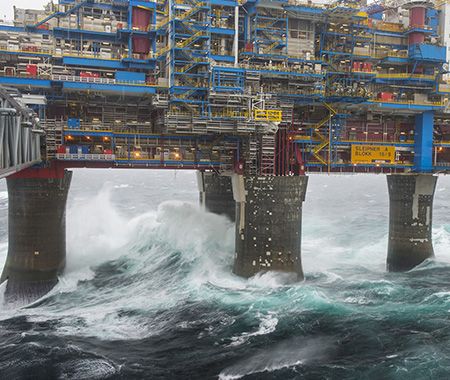

Constructed for use in harsh (non-hazardous) areas
Power configured from 25W to 100W to replace 2x18W, 2x36W and 2x58W fluorescent and conventional luminaires

Low profile, Durable, Reliable

Slim streamline design allow for access to limited space with low mounting heights
Offering an operating ambient temperature up to 60℃
LED Life L70>100,000hrs of maintenance free operation
Protection against 5G / IP67 / IK10 / 1000hrs salt spray

Easy and Through Wiring

Built-in WAGO RAIL-MOUNT TERMINAL BLOCKS TOPJOB® S with 6mm² max conductor for easy wiring
Captive screw applied for secure fastening and quickly re-installation of wiring compartment
2 cable entries on each end for in-out connection

6 Mounting Options

Low Ceiling

High Ceiling

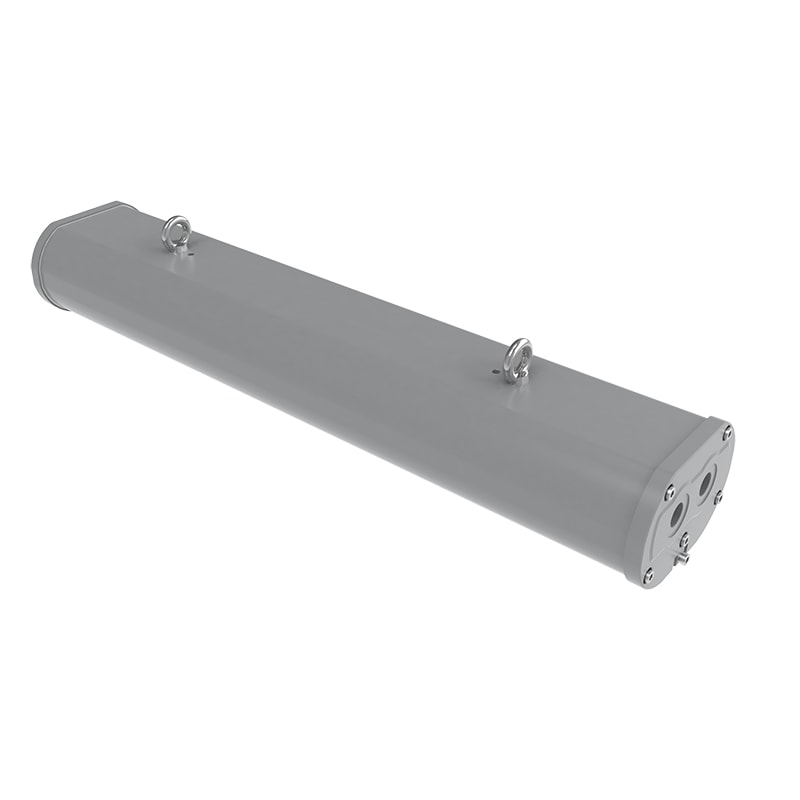

Eyebolt

Wall Mount Swivel Bracket

Wall mounting outreach bracket

Pole clamp

Extra safety

Safety cable accessory available to add and protect the device from dislocation

No-compromise Warranty

NJZ warrant to the original purchaser, all delivered products should be free from defects in the material and workmanship for up to 5-Year from the date of installation (or 30 days after date of shipment to the Purchaser)

Safety lighting

Battery backup help maintain safety lighting during a power outage with self-contained NiCad battery up to 180mins run time in emergency mode

Archer™ FLL Linear
