Victory™ FLP Flood

100W - 840W
Features / Advantages
  • Innovative design accommodates up to 6 LED modules
  • Heat-sinking technology ensures long lifespan and low light decline
  • Double coupling design guarantees IP67 protection for wet locations
  • High luminous efficacy-Up to 150 Lm/W
  • Input Voltage: AC120-277V,AC347-480V (50/60Hz)
  • Instant illumination and restrike-no warm-up time required
  • Anti-corrosion housing tested 500hrs to standard ASTM”B117-11”
  • All exposed fasteners with quality stainless steel 316
  • High Temperature silicone gasketing
  • Thermal shock and impact resistant tempered glass or PC Lens
  • Valid over the entire temperature range from -40°C to 50°C (-40 ºF to 122 ºF)


Specsheet Installation Guide IES

Remote Driver Operation

Cable Extension
Distance between the power supply and luminaire can be extended up to 30m. The voltage drop on the cable must not exceed 2V. 4mm² cable is recommended for 30m extension.


7 different optics

15°/ 30°/ 60°/ 90°/ 120°/ 30*120°/ T3
available for different applications from narrow to assymetric light distribution


15°


30°


60°


90°


120°


30*120°


T3

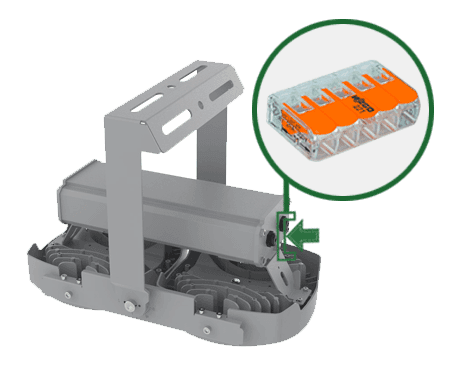

Easy and Through Wiring

Built-in wiring compartment with two cable entries and WAGO 221 lever connectors for easy wiring ( 0.5~4mm2)


Protect your investment

Wire guard accessories available to add and protect the device from impact


Protect Night SKY

Glare Shield accessories available to protect against light pollution during nights


Extra safety

Safety cable accessory available to add and protect the device from dislocation

Durability Test
