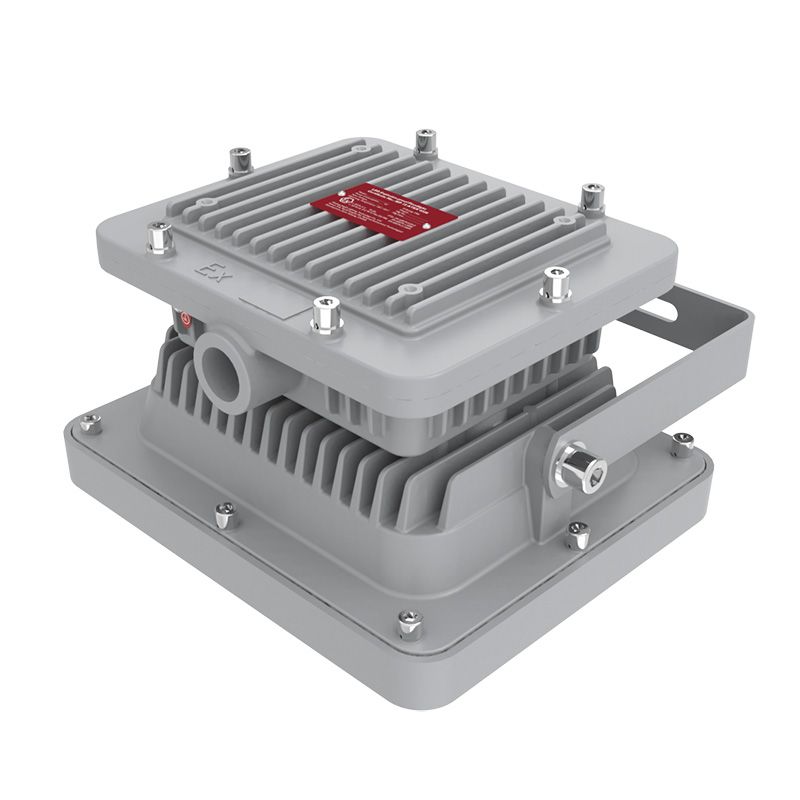

Defender™ FEL-B Area

20W / 40W / 50W / 60W

Features / Advantages

Instant illumination and restrike no warm-up time required
Wide power range from 20W to 60W
High luminous efficacy-Up to 130 Lm/W
Universal Voltage: AC100-270V (50/60Hz)
Optional lighting distribution 25°, 60°, 110°
Anti-corrosion aluminum housing tested 1000hrs to standard ASTM”B117-11”(Marine reinforced ver. available upon request)
All exposed fasteners with quality stainless steel 316
Robust design rated with IP66 / IK08 / 5G

Specsheet Installation Guide IES

Excellent performance at a competitive price

Provide 70-175W HID/MH equivalent lighting (2,000 to 6,000Lm) that saves 70% percent in maintenance and energy costs

Light-weight Design

For easy handling, especially when working 20 feet above the floor

3 Optic option

25°/ 60°/ 110°available for different applications from spot to flood for optimal light distribution

25°

60°

110°

Easy Installation

Built-in three WAGO 221 Lever Connector with 3-pole 4mm² max conductor for easy wiring
Captive screw applied for secure fastening and quickly re-installation of wiring compartment

Protect your investment

Surge protector accessories available to add and protect the device from voltage spikes

No-compromise Warranty

NJZ warrant to the original purchaser, all delivered products should be free from defects in the material and workmanship for up to 5-Year from the date of installation (or 30 days after date of shipment to the Purchaser)

LED Maintenance

L70 rated life of 100,000 hours which means to last 11 years at 24 hours daily operation

Defender™ FEL-B Area
