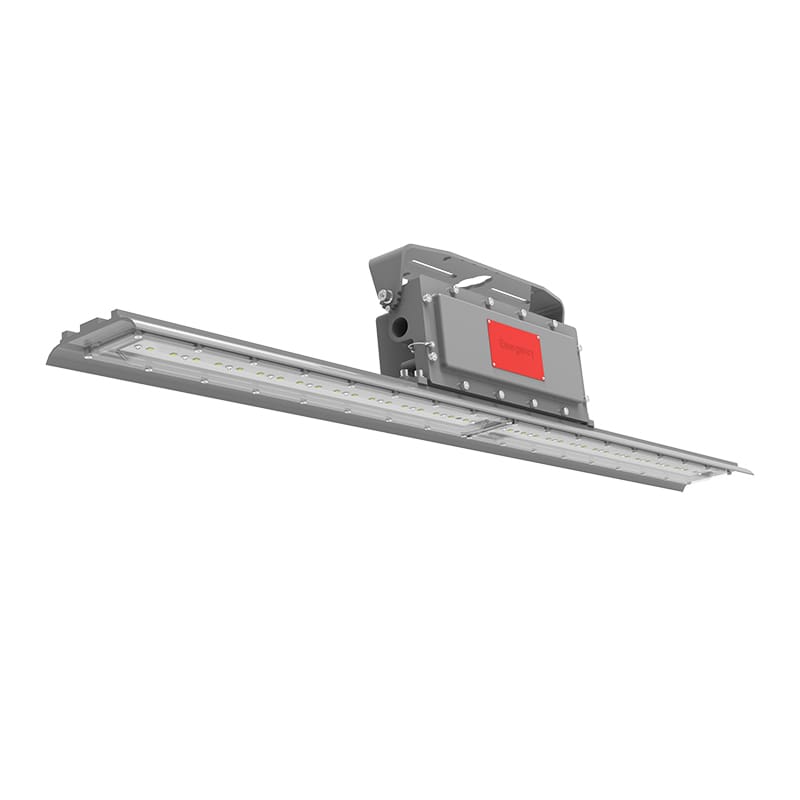

Ranger™ FEL-E Linear EMB

40W / 80W
Features / Advantages
  • Best-in-class system efficacy - Up to 137 Lm / W
  • Charge time 24h, Emergency run time 90 mins, Rated load 12w in emergency mode
  • Wide ambient temp. range from 0°C to + 50 °C (32°F ~ + 122°F)
  • Safe and reliable heat transfer - Offering a T-rating of T4(CID2) / T6(CIID1)
  • Instant on/off operation
  • Shock-and vibration-resistant - Durable LEDs with solder-less board connection
  • Copper-free aluminum body and corrosion resistant
  • All exposed fasteners with quality stainless steel 316
  • UV stable and impact resistant clear or diffused PC lens
  • Slim and compact design


Specsheet Installation Guide IES

Smart Lens choices


Clear PC
For Max lumen output


Diffused PC
For Minimum glare

Easy and Through Wiring

Built-in wiring compartment with three NPT ¾" entries and WAGO 221 lever connectors for easy wiring ( UL/CSA 20-10AWG)

5 Mounting Options


Ceiling & Wall

Hanging Mount

Stanchion

Pendant

Protect your investment

Surge protector accessories available to add and protect the device from voltage spikes


No-compromise Warranty

NJZ warrant to the original purchaser, all delivered products should be free from defects in the material and workmanship for up to 5-Year from the date of installation (or 30 days after date of shipment to the Purchaser)


LED Maintenance

L70 rated life of 147,000 hours which means to last 16 years at 24 hours daily operation

Durability Test
