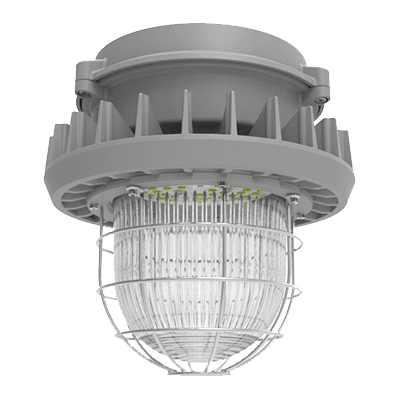

Warrior™ FEL-D Low Bay

45W / 65W
Features / Advantages
  • High luminous efficacy-Up to 150 Lm/W
  • Input Voltage: AC120-277V,AC347-480V (50/60Hz)
  • Instant illumination and restrike-no warm-up time required
  • Safe and reliable heat transfer-Offering a T-rating of T4A (CID2) / T5 (CIID1)
  • Shock and vibration resistant-Durable LEDs with solderless board connection
  • Die-cast aluminum body and frame-corrosion resistant
  • All exposed fasteners with quality stainless steel
  • High Temperature silicone gasketing
  • Thermal shock and impact resistant tempered



Specsheet Installation Guide IES

7 Mounting Options


Swivel Surface

Pendant

Ceiling Mount

Wall 90°

Wall 25°

Stanchion 90°

Stanchion 25°

1 Min Installation


Entry

Hinged design for hands-free wiring during installation and servicing.


Connect

Built-in three WAGO 211 lever Connector with 3-pole 4mm² max conductor for easy wiring

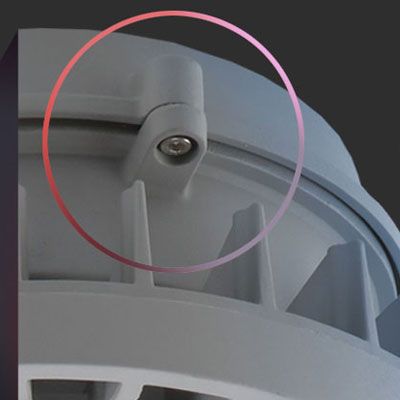

Finish

Captice screw applied for secure fastening and quickly re-installation of wiring

3 Lens Option


Clear
For Max lumen output

Diffused
For Minimum glare

Well Glass
For Wide beam spread

Protect your investment

Surge protector accessories available to add and protect the device from voltage spikes


Protect Night SKY

Glare Shield accessories available to protect against light pollution during nights


LED Maintenance

L70 rated life of 185,000 hours which means to last 21 years at 24 hours daily operation

Durability Test
