Thunder™ FEL-M High Bay

80W / 120W / 150W / 200W

Features / Advantages

High luminous efficacy-Up to 160 Lm/W
Input Voltage: AC100～277V, AC347～480V (50/60Hz)
Instant illumination and restrike no warm-up time required
Valid over the entire temperature range from -40°C upto +65°C（-40°F ~+149°F）
Safe and reliable heat transfer-Offering a T-rating of T4A (CI D2 / CII D1 / CIII)
Shock and vibration resistant-Durable LEDs with solderless board connection
Anti-corrosion housing tested 1000hrs to standard ASTM”B117-11”
All exposed fasteners with quality stainless steel 316
High Temperature silicone gasketing
Thermal shock and impact resistant tempered Glass or PC Lens

Specsheet Installation Guide IES

Safe and reliable performance

Offering a T-code of T4A (CID2/CIID1), much cooler than conventional fixtures, with operating ambient temperature up to 65℃ (149°F)

The most powerful and efficient high bay

Four lumen outputs provide 320-1000W HID/MH equivalent lighting (12,000 to 30,000Lm) that saves 70% percent in maintenance and energy costs

Smart Lens Choices

*Above three options both available in polycarbonate and tempered glass

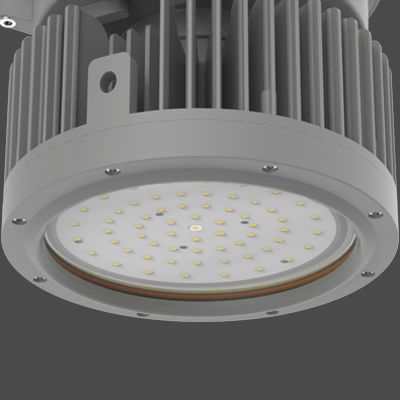

Clear

For Max light distribution & lumen output with T1 / T3 / T5 optics

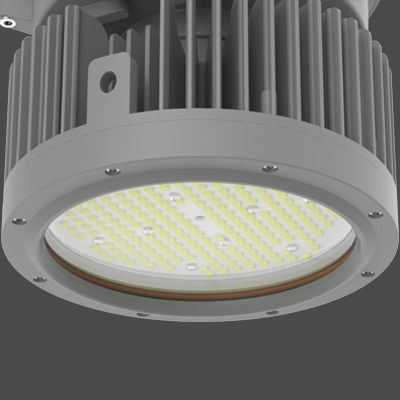

Diffused

For Minimum glare

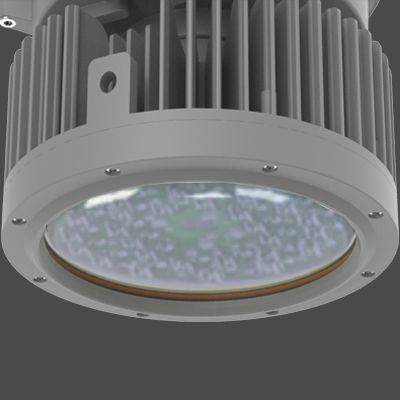

Drop Lens

For Wide beam spread

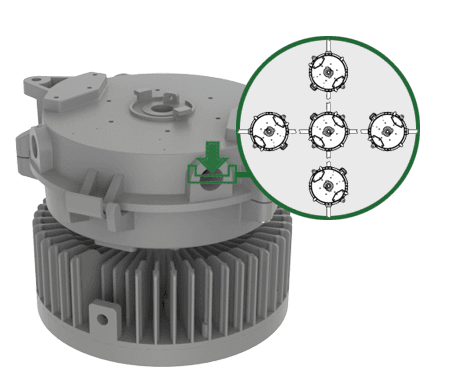

Easy and Through Wiring

Built-in wiring compartment with six NPT ¾" entries and WAGO 221 lever connectors for easy wiring ( UL/CSA 20-10AWG)

Protect your investment

Wire guard accessories available to add and protect the device from impact

Protect your investment

Surge protector accessories available to add and protect the device from voltage spikes

Extra safety

Safety cable accessory available to add and protect the device from dislocation

Durability Test
