LED Area Lights-Freedom - Area light
  • Features
  • Mounting Options
  • Specification
  • Application
  • Virtual 3d
  • Download

1. UL, TUV CE, CB, RoHS, SAA approval

2. Heavy duty die-cast aluminum housing with corrosion resistant coating

3. Special modular heat dissipation design ensures long lifespan

4. DLC listing with excellent lighting efficacy 100lm/W

5. IP67, adapting to different indoor and outdoor applications

6. Mounting: hanging bracket, hanging ring mount, pendent

more products,please click to:





  • FLB-P LED High Bay Lighting

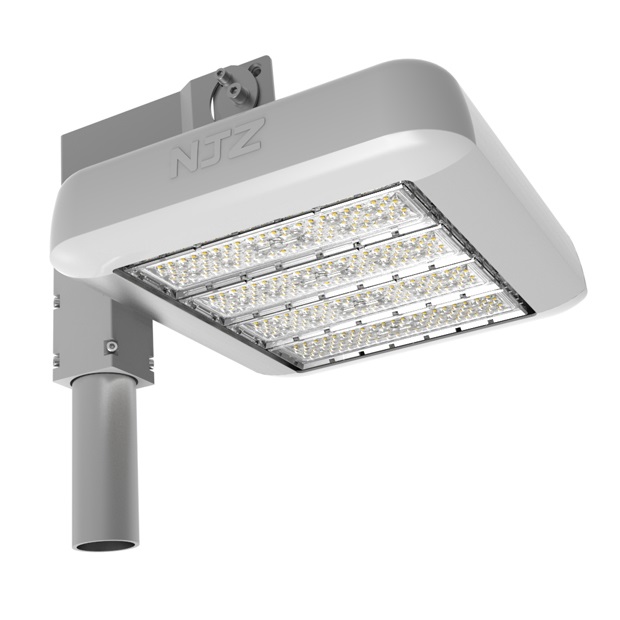

    Front of the LED High Bay Light
  • FLB-P LED High Bay Lighting

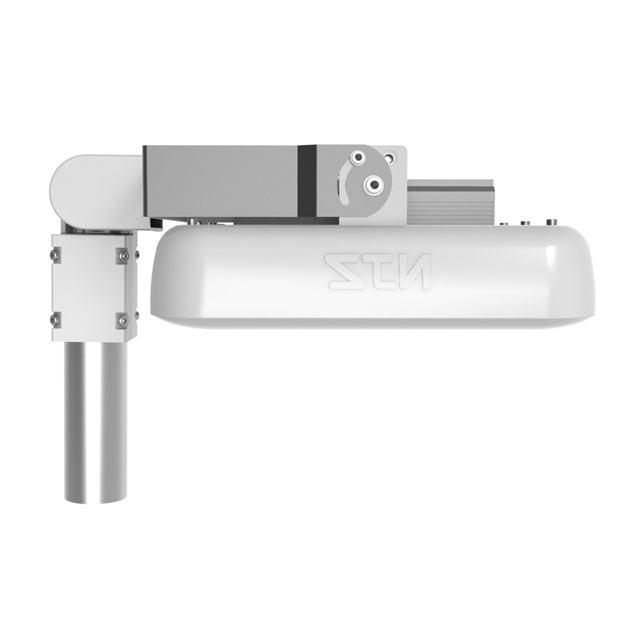

    Side of the LED High Bay Light
  • FLB-P LED High Bay Lighting

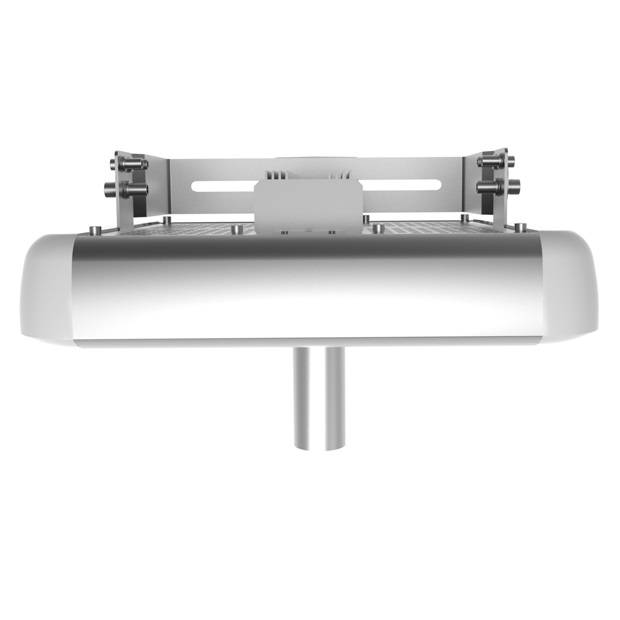

    Side of the LED High Bay Light
  • FLB-P LED High Bay Lighting

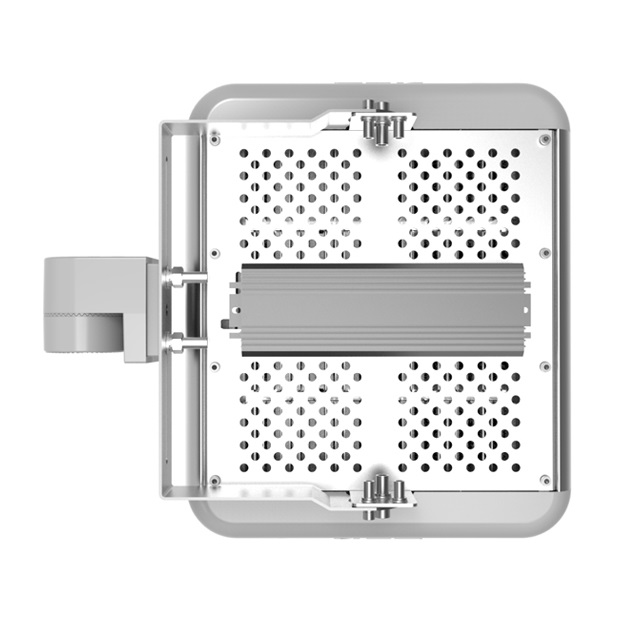

    Back of the LED High Bay Light
Model  Area lighting Freedom  (SLE)
Electric Power Consumption    50W/100W/150W/200W/250W/300W/400W
Input Voltage        AC100-277V
Input Frequency     50/60Hz
Power Factor > 0.95
Total Harmonic Distortion <15%
Power Supply Efficiency ≥90%
Optical Luminous Flux
(Lumen Output)
5000Lm  ~ 40000Lm
Luminous Efficacy
(Lumens per Watt)
100Lm/W
Beam angle  60°/120°
Correlated Color Temperature (CCT)   4000K / 5700K
Color Rendering Index (CRI)  Ra≥70
LED Module Usage 1 / 2 / 3 / 4 / 5 / 6 / 8Units
Environmental Ambient Operating Temperature -40ºC ~ +50ºC
Ambient Operating Humidity 10%~90% RH
Mechanical Housing Material Aluminum Alloy
Lens Material           PC
Mounting Options
Universal Hanging Bracket
Hanging Ring Mount
Pendant Mount
IP Rating IP67
Net weight
3.2kg/7.1lbs  5.0kg/11.0lbs  6.9kg/15.2lbs
              9.1kg/20.1lbs  10.3kg/22.7lbs
            12.6kg/27.8lbs  16.6kg/36.6lbs
Dimensions (L×W×H)
356×180×152 mm     14×7.1×6in
356×260×152 mm     14×10.2×6in
356×340×152 mm     14×13.4×6in
420×356×152 mm     16.5×14×6in
500×356×152 mm     19.7×14×6in
580×356×152 mm     22.8×14×6in
740×356×152 mm     29.1×14×6in
Gross Weight
7.8kg/17.2lbs  6.0kg/13.2lbs  8.3kg/18.3lbs
          10.3kg/22.7lbs  11.7kg/25.8lbs
          13.9kg/30.6lbs  18.4kg/40.6lbs
Out box Dimension (L×W×H) 430×525×220mm     16.9×20.7×8.7in
430×345×220mm     16.9×13.6×8.7in
430×425×220mm     16.9×16.7×8.7in
430×505×220mm     16.9×19.9×8.7in
430×585×220mm     16.9×23.0×8.7in
430×665×220mm     16.9×26.2×8.7in
430×825×220mm     16.9×32.5×8.7in
Warranty 5-year limited system warranty
Lumen Maintenance: 50,000 hours@ L70

Application

  • Parking lot Main streets, secondary trunk roads, sidewalks, residential areas, industrial parks, squares, parks, schools and gardens.
NGC Factory Illuminating Project in USA

360 VR

YOU Can view the product animation after installing IE9, Safari, Opera, or Firefox. 360  VR
SLA

Certificate UL Download
CB Download
CE_EMC Download
CE_LVD Download
CCC Download
FCC Download
Specification NJZ Freedom - Area light Specification (Pending) Download
IES IES Download
