Workshop lighting project, Nanjing, China, 2015

Background

Location: Nanjing, China

Product Model: NJZ-FLB-150PI



Introduction:

The workshop is 14 meters high, and space between two lamps is 6*8meter. After being installed NJZ 150W LED high bay, the flux level of floor accord with initial design standard, and totally reach up to building lighting standard GB/T 50034—2004. NJZ High bay energy saved 63% compared with HPS lamps.

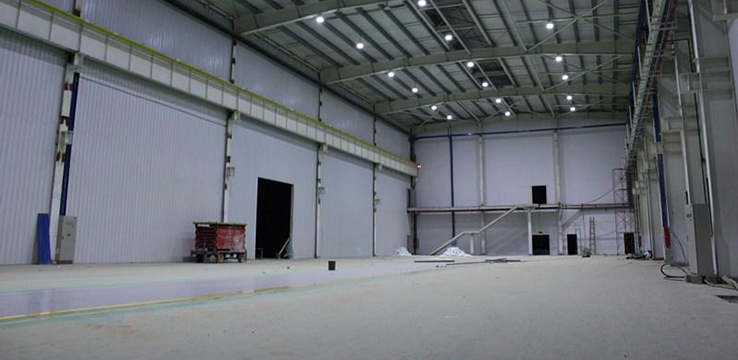

China Transmission Heavy Equipment Co., Ltd Lighting Project

Lux level on floor: Max=302Lux, Min=123Lux, Ave= 234Lux

Both total lighting uniformity, longitudinal uniformity and transverse uniformity are above 0.8, which achieved high light efficiency.

The total lighting uniformity, longitudinal uniformity, transverse uniformity are above 0.8, which achieve high light efficiency. All lamps are high CRI without glare.

China Transmission Heavy Equipment Co., Ltd Lighting Project

Product Specification:

Power: 150W, CCT: 5500K, Light Efficiency≥90Lm/W, Ra≥70, Working Voltage: 110-220V, PF≥0.95, IP rate: IP67, Current: 860mA, Beam Angle: 60°, Lamp Color: Silver
